Small Site, Big Plans

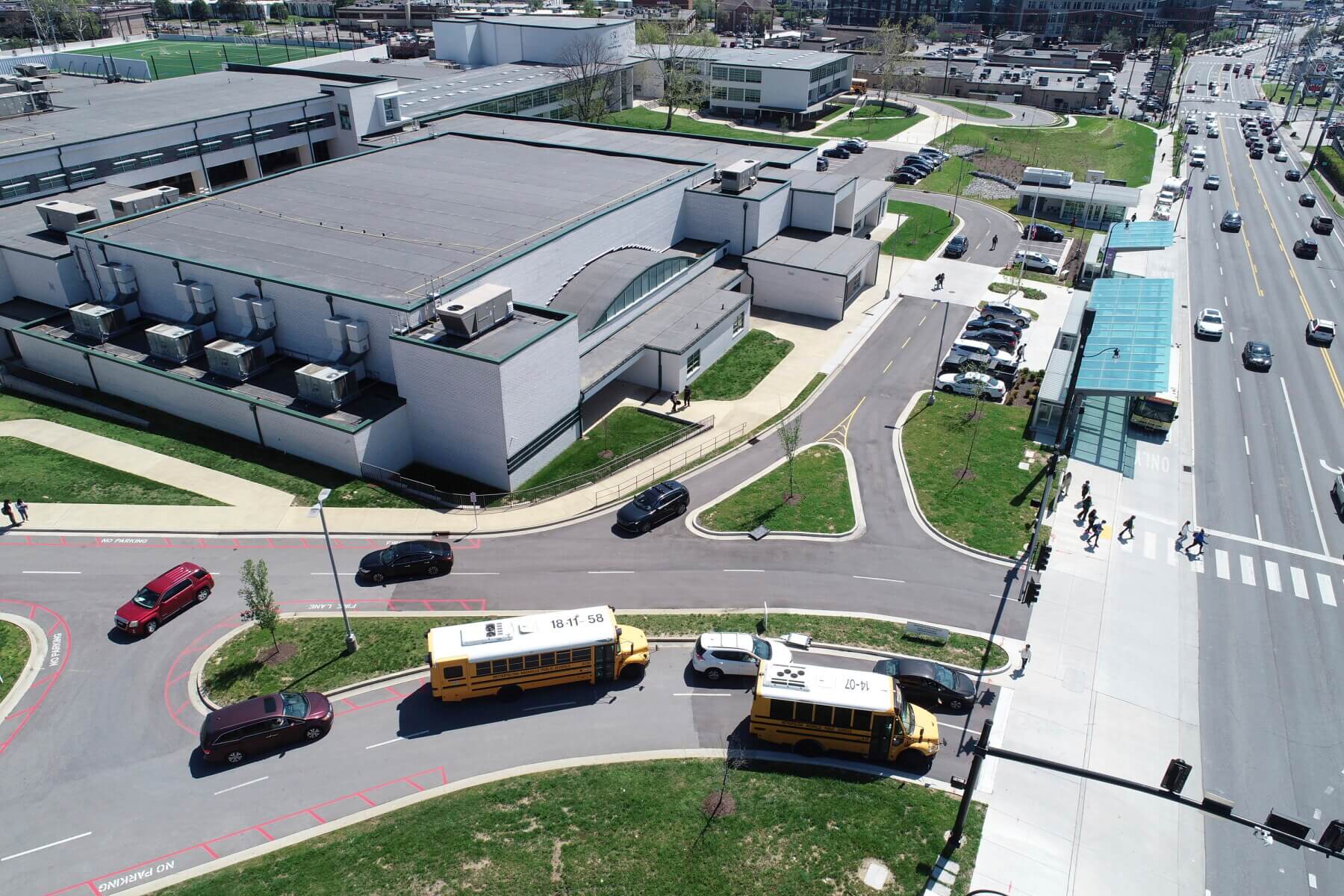

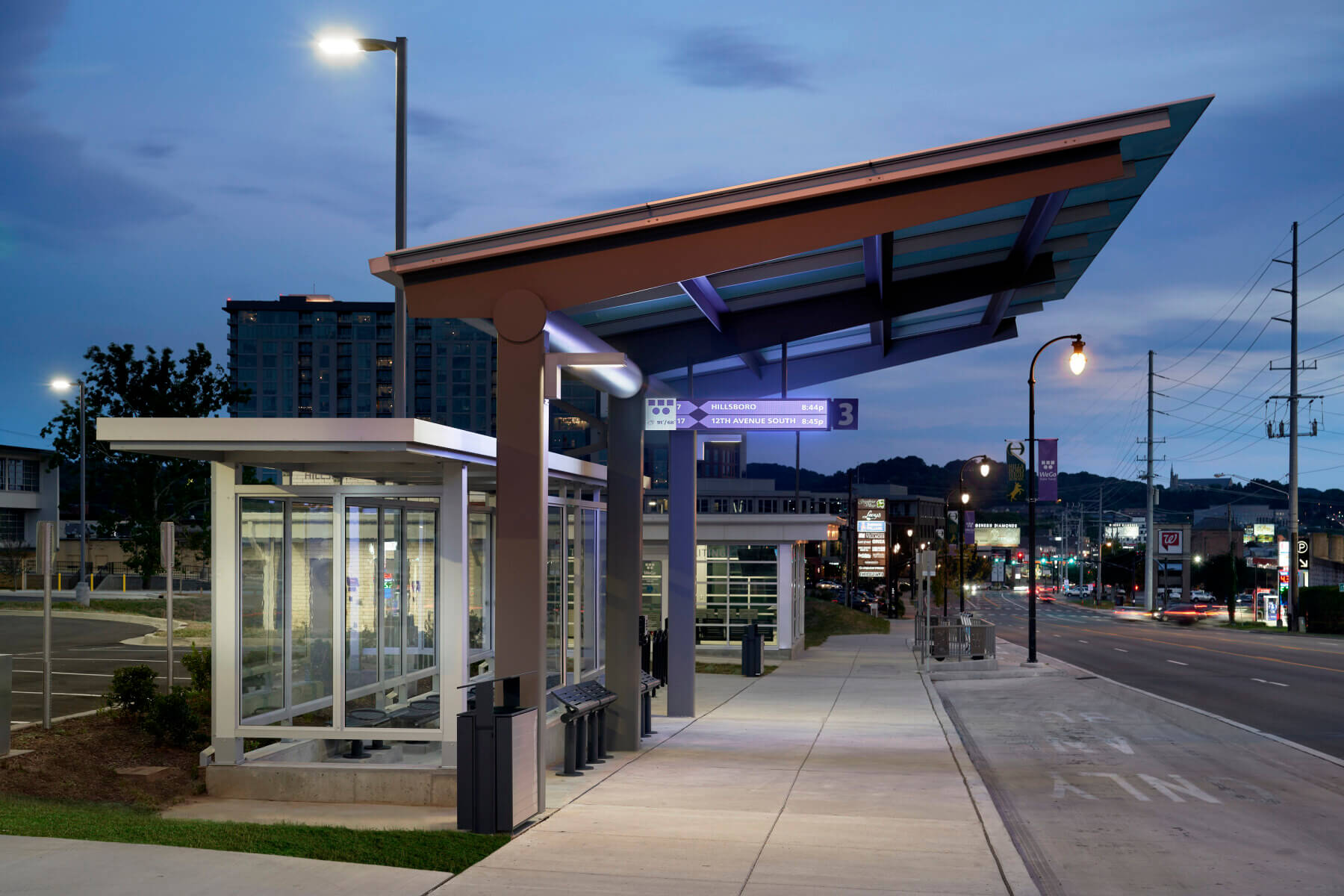

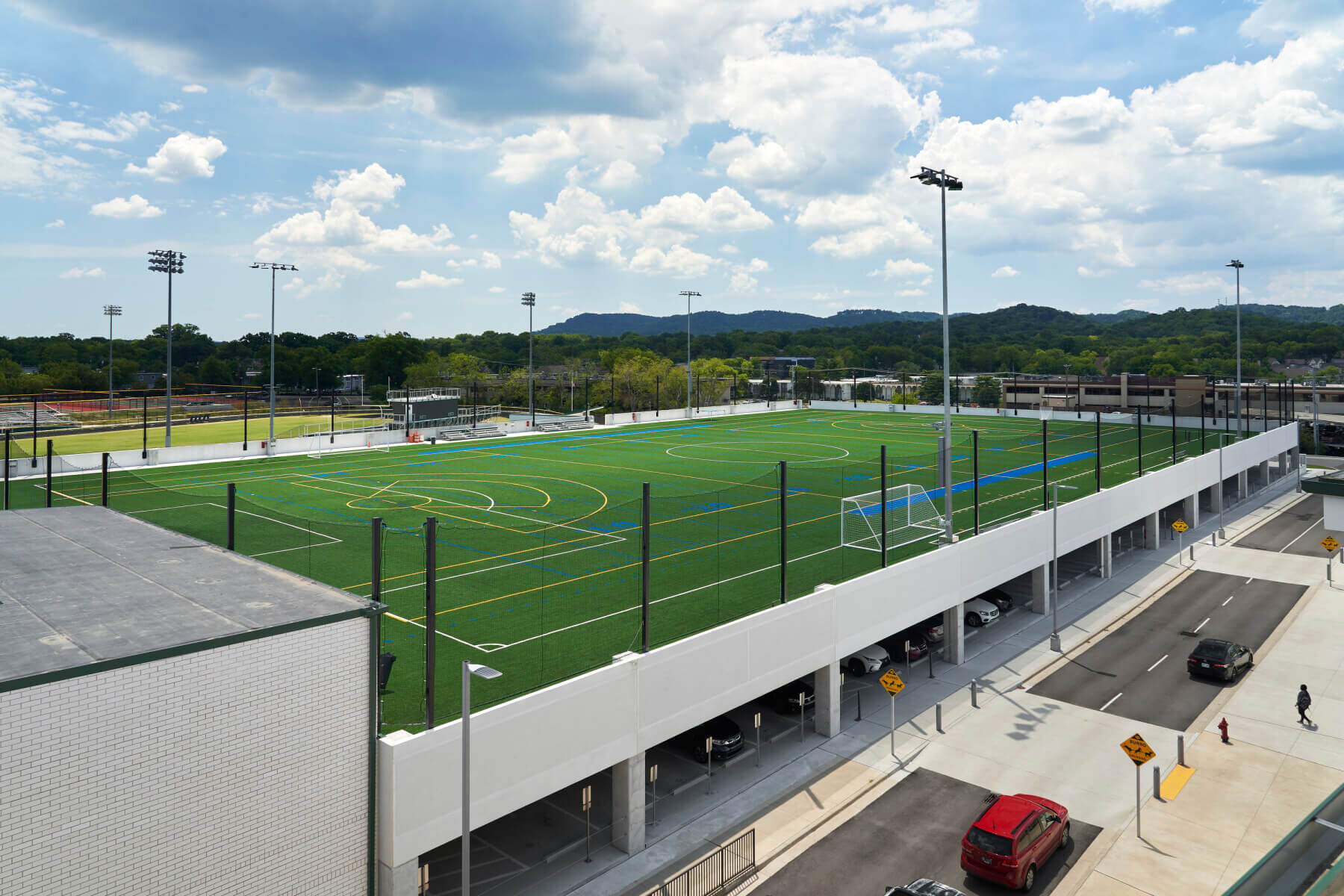

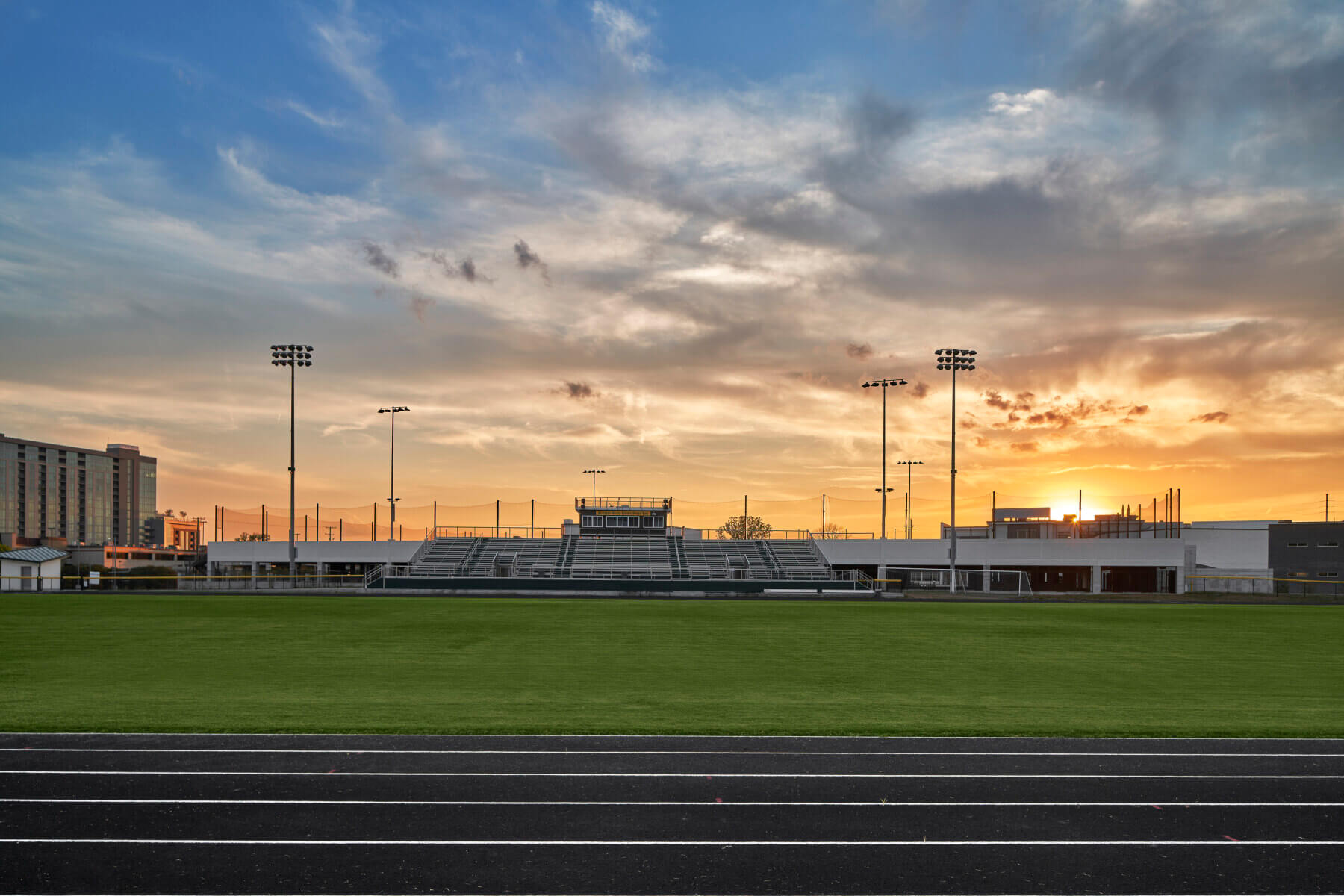

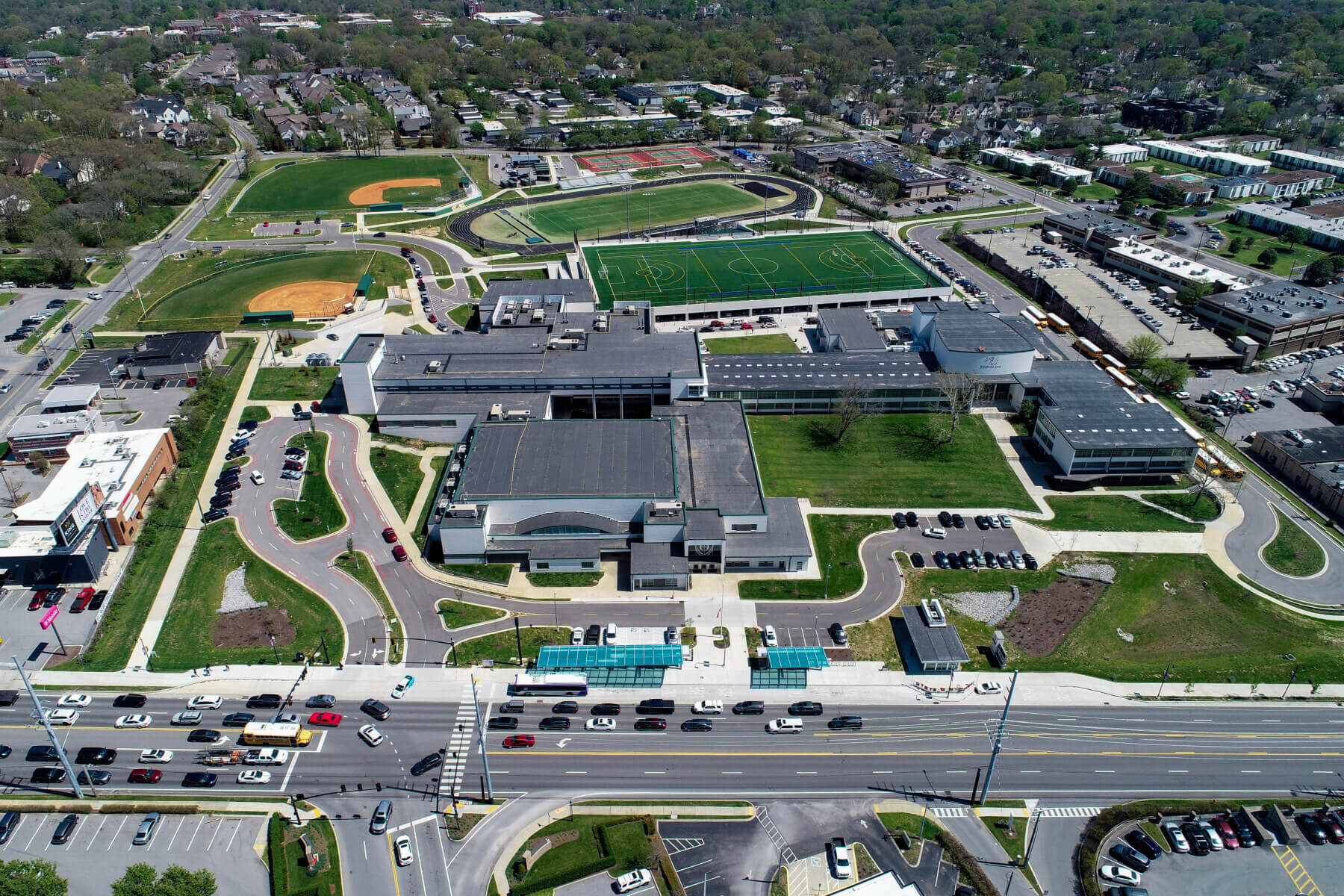

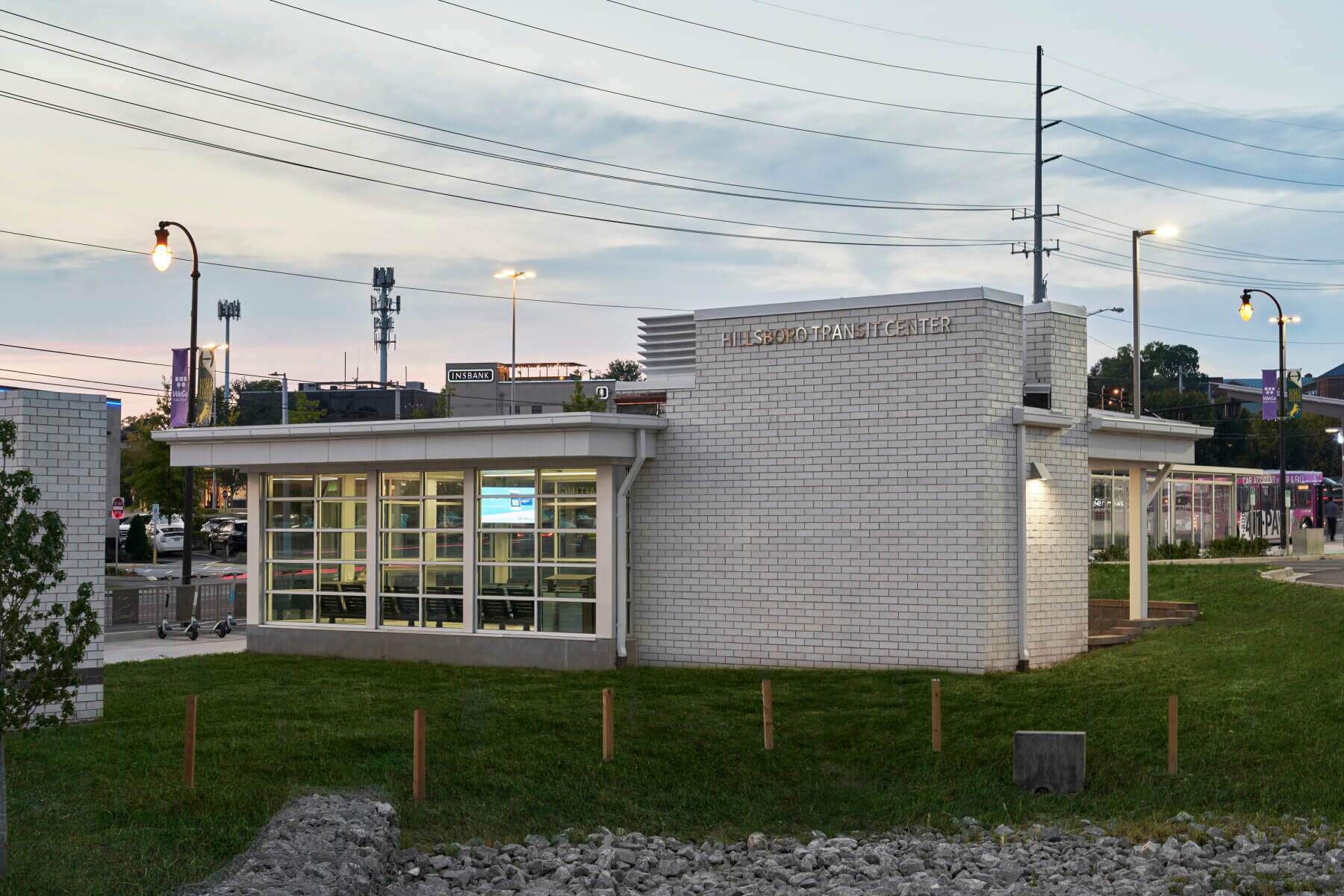

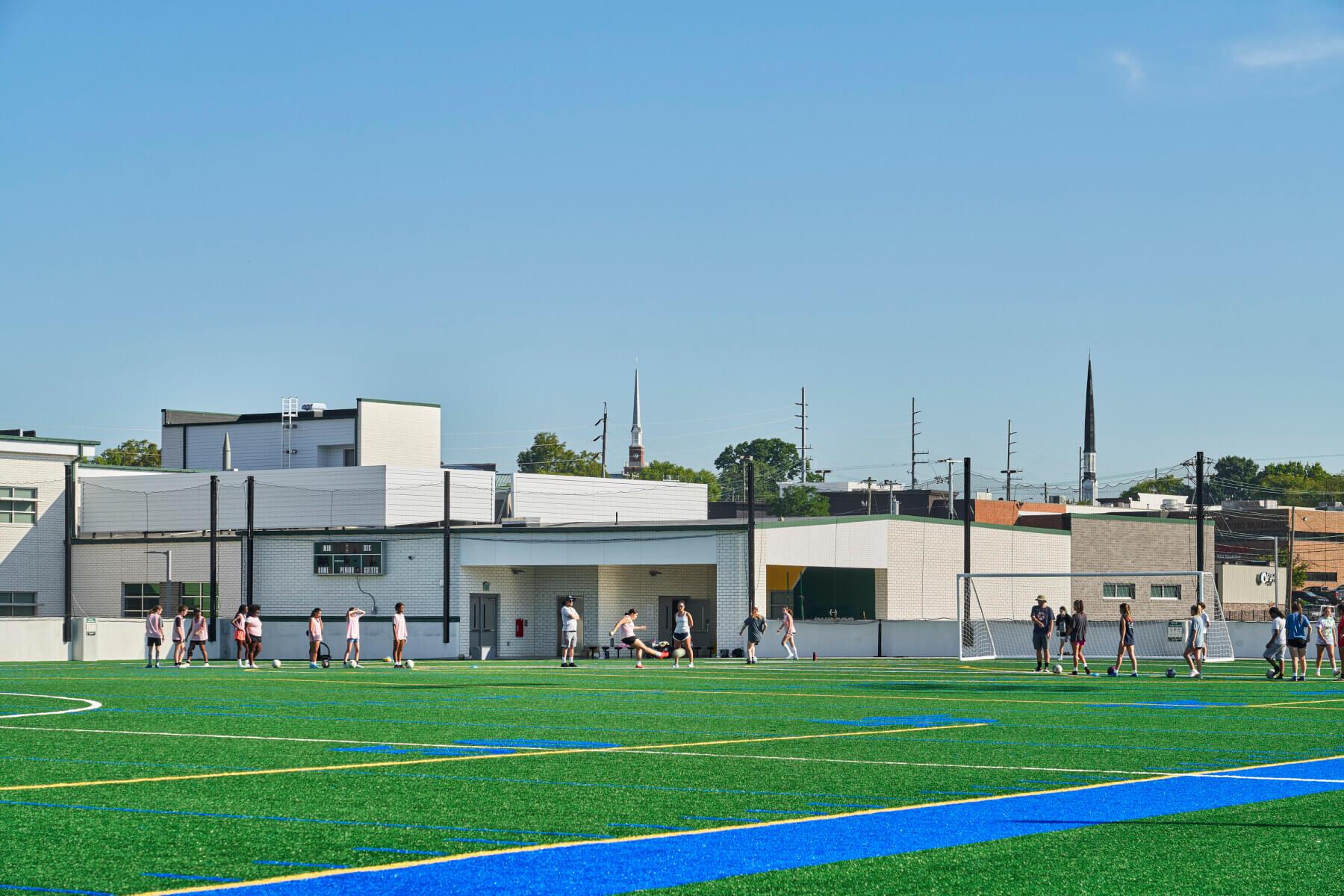

The project called for new classroom buildings, renovating existing buildings, increasing parking for students and faculty, redesigning sports fields, and adding a Goodwill drop-off center and a WeGo Public Transit neighborhood transfer station. Many new high schools with similar scope requirements would require a parcel of land in excess of 50 acres, however we were limited to the 29 acres the site originally sat on due to the landlocked nature of urban redevelopment. These constraints led to the design of a multi-story campus with a structured rooftop flex field over parking.
Surprise in Store
Over the course of HHS’ nearly 70-year lifespan, the school’s campus experienced at least five additions. While we always planned to demolish the existing storm infrastructure and replace it with a new design, the lack of historical drawings provided a challenge in understanding existing flows to the public storm infrastructure in the right-of-way as it relates to existing onsite drainage basins.
We also discovered a piped stream running through the school’s site, which required additional permitting from the Tennessee Department of Environmental Conservation and the Army Corps of Engineers. The large piped stream also conveyed stormwater from approximately 40 acres of developed area from the Green Hills community, further limiting the site footprint available for green infrastructure practices.
If stormwater surprises weren’t enough, our team also discovered unusual site conditions while excavating for a new parking lot. The fill was never compacted and contained blocks and stumps—what turned out to be basements from houses on the property that were demolished in the early 1950s and 1960s.
The Best Bet: Bioretention Ponds

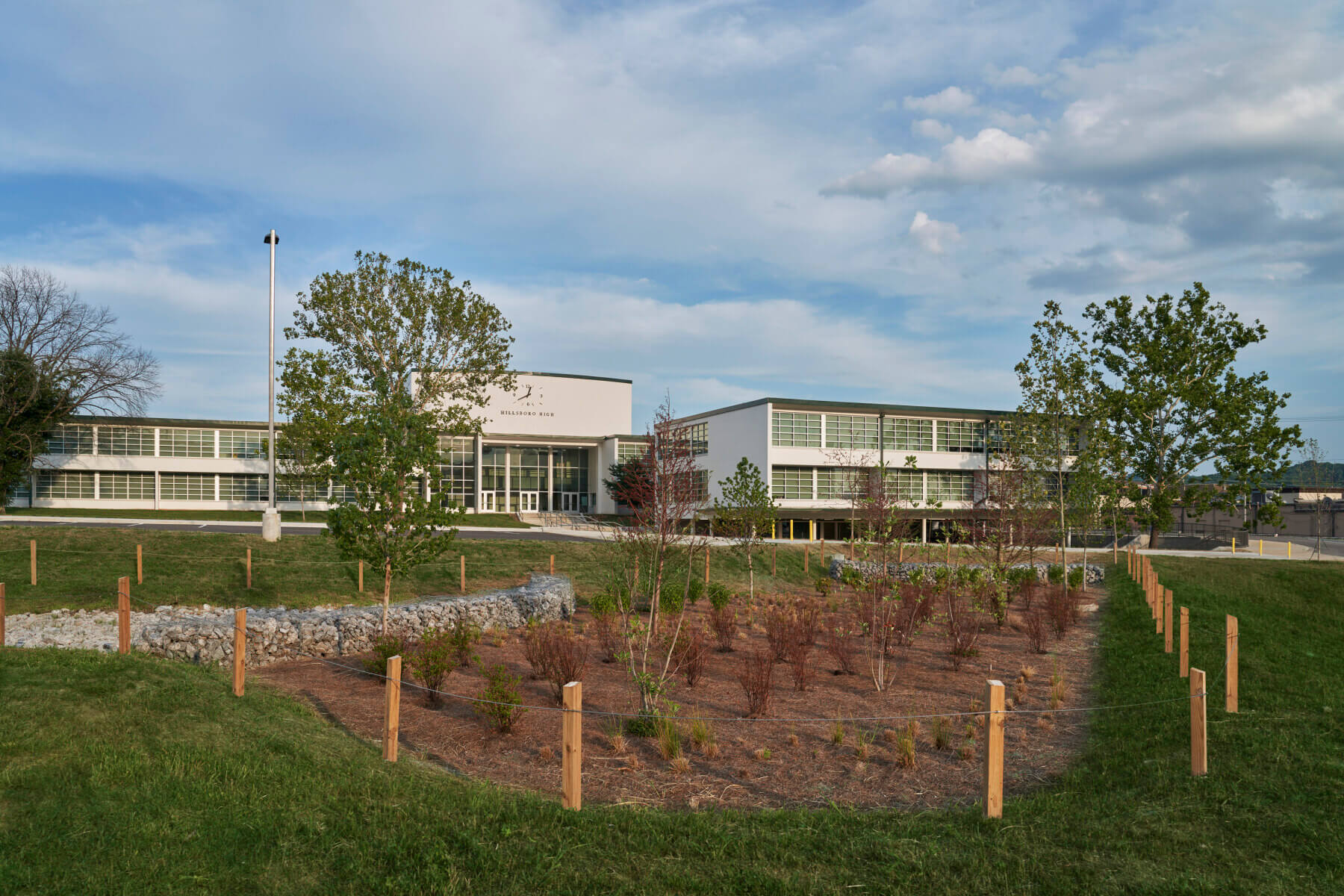

In 2016 Metro Nashville implemented mandatory development regulations that require all site designs to utilize green infrastructure to meet stormwater runoff water quality requirements. To keep the project within its $73 Million budget, the most efficient and cost effective design solution for managing the site’s enormous amount of stormwater was bioretention ponds. The campus’ seven bioretention ponds contain a combined treatment volume of approximately 40,000 cubic feet.
Due to the site’s space constraints, many of the ponds had to be placed close to buildings and structures. While we typically avoid such pond placement considering basins’ gravel, soil and other loose media doesn’t provide ample support for structural foundations, we involved the project’s structural engineer to balance the depth of the building footings and distance between the features, making sure everything was structurally sound.
LEEDing the Way in Sustainability
Hillsboro High School was LEED Gold certified by the U.S. Green Building Council in recognition of the project’s sustainable practices. Gresham Smith’s smart site solutions contributed to the designation, helping improve water efficiency, increase access to green space and connect to the surrounding community.
Back to School
The project ultimately encompassed 10,000 linear feet of pipe, more than 150 storm structures and 3,500 labor hours of planning, design and plan production. Small urban spaces are often the perfect place to implement low impact development practices, creating multifunctional areas tailored to each site. By retrofitting existing landscapes with green infrastructure as we did at Hillsboro High School, we can address the unique needs of our cities and limit the impact on our built environment, enhancing quality of life for residents and visitors alike.
Celebrating the Burros

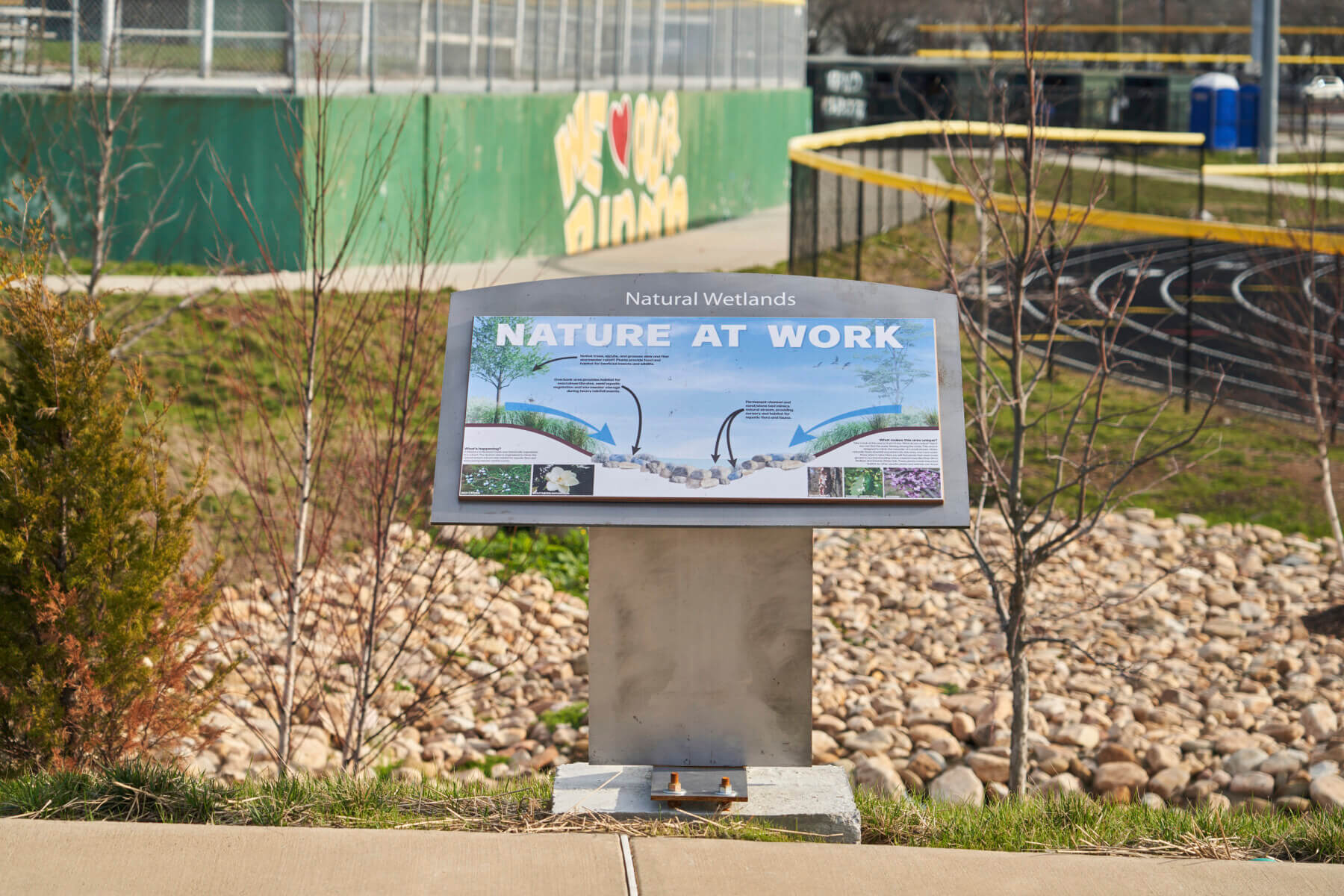

Our Experiential Design and Wayfinding / Branded Environments team designed a complete program of signage and spirit graphics for the campus, parking areas, athletic facilities, classroom and assembly areas, and administrative offices. The design program pays homage to the campus’ historical significance as a signature work by one of Nashville’s most prominent twentieth-century architects.
